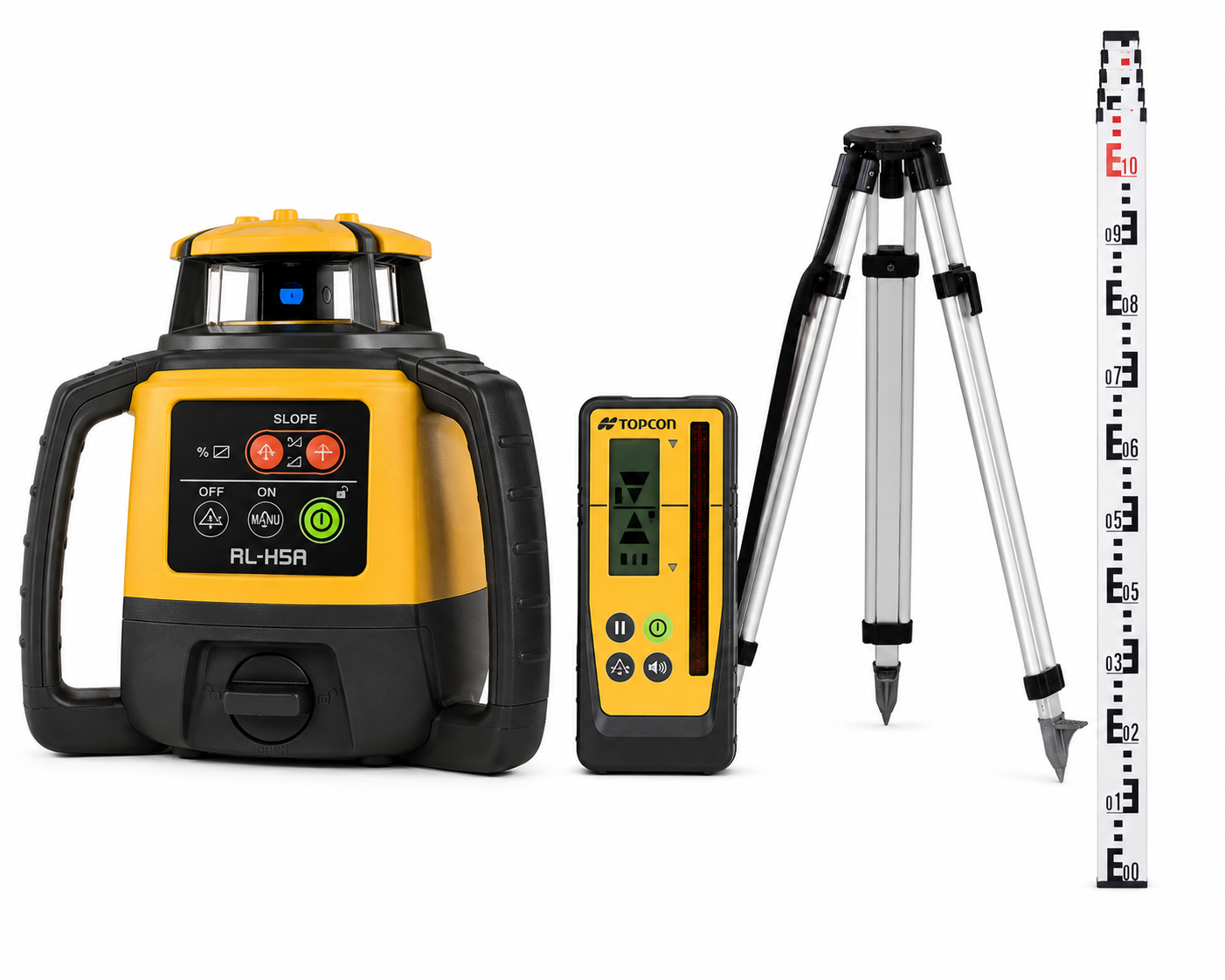

Topcon Laser Level  RL-H5A

Topcon′s NEW RL-H5A auto-levelling laser combines precision, versatility and value in one job site tough package. Its super-fast self-levelling motors are accurate to +/-10 arch seconds meaning whether you′re checking grade or setting batter boards you′re going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600ft. (800m) diameter working radius making it a great reference for machine mounted receivers. All of these features plus optional dry, rechargeable battery operation makes the RL-H5A more than twice the laser offered by anyone else.

Topcon Laser Level RL-H5A features include:

• • Simple, intuitive manual slope match capability with automatic cross axis self-levelling
  • Fast, automatic self-levelling
  • Ruggedized construction with dual handles and IP66 water-resistant housing
  • NEW LS100D Digital Receiver Long-Distance laser sensor
  • Up to 100 hours of production from dry or 60 hours rechargeable batteries
  • Automatic height of instrument alert (HI alert)
  • Optimally focused beam provides long 2,600ft. (800m) operating radius
  • Machine control compatible
  • 10 arc second accuracy

5-year guarantee

All RL-H5A lasers are covered by Topcon′s 5-year guarantee against defects in parts and/or workmanship for a period of 5 years. Topcon understands the demands you put on your professional equipment. Every investment you make in an instrument has to offer maximum productivity. That’s why we provide our 5-year guarantee. Our proven reliability and exemplary customer service gives you the assurance and confidence that Topcon products will work for you today, every day…; and in the future. Once you see the RL-H5A for yourself, you’ll know right away it’s the best value in general construction/slope lasers today. With impressive Topcon technology and an affordable price, you’ll definitely want to put it to work for you! For a limited Time: “5 year Topcon Guarantee”

Topcon RL-H5A Feature List:

• Topcon RL-H5A – High-precision, reliable, and durable laser level.
• Accuracy – Exceptional accuracy with up to ±1/16″ at 100 ft (±1.5 mm at 30 meters).
• Range – Impressive working range of up to 2,600 ft (800 meters) with a laser receiver.
• Long Battery Life – Extended operating time of up to 100 hours with four D-cell alkaline batteries.
• IP66 Rating – Dustproof and water-resistant, suitable for challenging worksite conditions.
• Versatility – Ideal for a wide range of applications, including grading, excavating, concrete work, and more.
• Single-Slope Mode – Enables simple and efficient slope setting for grade matching and sloped driveways.
• Automatic Self-Leveling – Quick self-leveling feature enhances ease of use and productivity.
• Tilt Function – The RL-H5A can be set to manual mode to match specific slope angles.
• Anti-Drift System – Minimizes errors caused by wind, vibrations, or temperature changes.
• Wireless Remote Control – Conveniently adjust the laser’s settings from a distance.
• LCD Display – Clear and easy-to-read display for quick access to essential information.

Topcon RL-H5A Technical List:

• Laser Class – Class 3R (IEC60825-1:2014).
• Laser Diode – 635 nm visible red laser.
• Self-Leveling Range – ±5 degrees.
• Rotation Speed – 600 RPM.
• Operating Temperature – -20°C to 50°C (-4°F to 122°F).
• Storage Temperature – -25°C to 70°C (-13°F to 158°F).
• Battery Type – 4x D-cell alkaline batteries.
• Battery Life – Approximately 100 hours.
• Tripod Thread – 5/8″ x 11.
• IP Rating – IP66 (dustproof and water-resistant).
• Weight – Approximately 2.7 kg (6 lbs) with batteries.
• Dimensions – 210 mm (W) x 190 mm (D) x 200 mm (H).
• Warranty – Manufacturer’s standard warranty applies.
