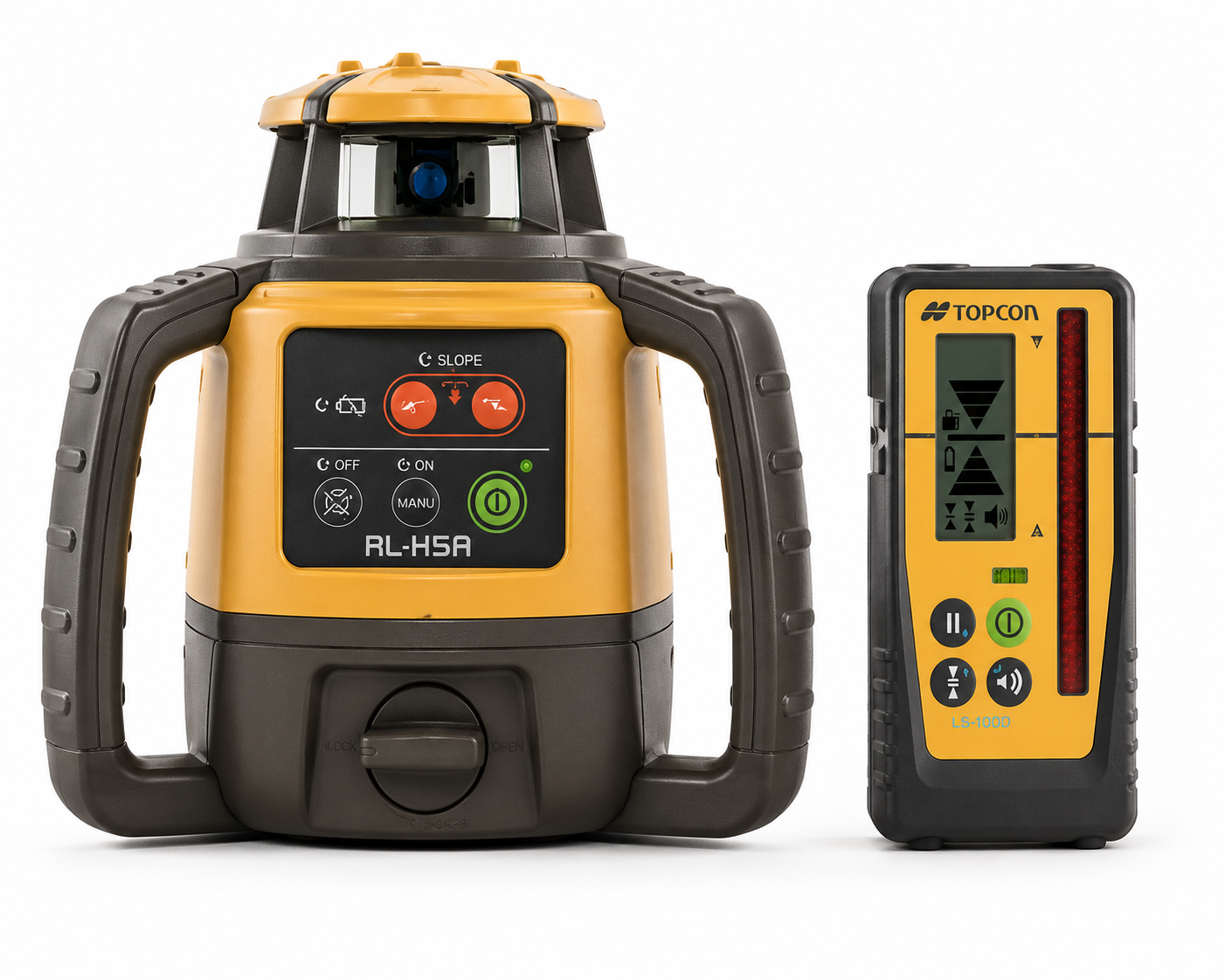

Topcon Laser Level  RL-H5A

Topcon′s NEW RL-H5A auto-levelling laser combines precision, versatility and value in one job site tough package. Its super-fast self-levelling motors are accurate to +/-10 arch seconds meaning whether you′re checking grade or setting batter boards you′re going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600ft. (800m) diameter working radius making it a great reference for machine mounted receivers. All of these features plus optional dry, rechargeable battery operation makes the RL-H5A more than twice the laser offered by anyone else.

Topcon Laser Level RL-H5A features include:

• • Simple, intuitive manual slope match capability with automatic cross axis self-levelling
  • Fast, automatic self-levelling
  • Ruggedized construction with dual handles and IP66 water-resistant housing
  • NEW LS100D Digital Receiver Long-Distance laser sensor
  • Up to 100 hours of production from dry or 60 hours rechargeable batteries
  • Automatic height of instrument alert (HI alert)
  • Optimally focused beam provides long 2,600ft. (800m) operating radius
  • Machine control compatible
  • 10 arc second accuracy

5-year guarantee

All RL-H5A lasers are covered by Topcon′s 5-year guarantee against defects in parts and/or workmanship for a period of 5 years. Topcon understands the demands you put on your professional equipment. Every investment you make in an instrument has to offer maximum productivity. That’s why we provide our 5-year guarantee. Our proven reliability and exemplary customer service gives you the assurance and confidence that Topcon products will work for you today, every day and in the future. Once you see the RL-H5A for yourself, you’ll know right away it’s the best value in general construction/slope lasers today. With impressive Topcon technology and an affordable price, you’ll definitely want to put it to work for you! For a limited Time: “5 year Topcon Guarantee”

Topcon RL-H5A Feature List:

• Topcon RL-H5A – High-precision, reliable, and durable laser level.
• Accuracy – Exceptional accuracy with up to ±1/16″ at 100 ft (±1.5 mm at 30 meters).
• Range – Impressive working range of up to 2,600 ft (800 meters) with a laser receiver.
• Long Battery Life – Extended operating time of up to 100 hours with four D-cell alkaline batteries.
• IP66 Rating – Dustproof and water-resistant, suitable for challenging worksite conditions.
• Versatility – Ideal for a wide range of applications, including grading, excavating, concrete work, and more.
• Single-Slope Mode – Enables simple and efficient slope setting for grade matching and sloped driveways.
• Automatic Self-Leveling – Quick self-leveling feature enhances ease of use and productivity.
• Tilt Function – The RL-H5A can be set to manual mode to match specific slope angles.
• Anti-Drift System – Minimizes errors caused by wind, vibrations, or temperature changes.
• Wireless Remote Control – Conveniently adjust the laser’s settings from a distance.
• LCD Display – Clear and easy-to-read display for quick access to essential information.

Topcon RL-H5A Technical List:

• Laser Class – Class 3R (IEC60825-1:2014).
• Laser Diode – 635 nm visible red laser.
• Self-Leveling Range – ±5 degrees.
• Rotation Speed – 600 RPM.
• Operating Temperature – -20°C to 50°C (-4°F to 122°F).
• Storage Temperature – -25°C to 70°C (-13°F to 158°F).
• Battery Type – 4x D-cell alkaline batteries.
• Battery Life – Approximately 100 hours.
• Tripod Thread – 5/8″ x 11.
• IP Rating – IP66 (dustproof and water-resistant).
• Weight – Approximately 2.7 kg (6 lbs) with batteries.
• Dimensions – 210 mm (W) x 190 mm (D) x 200 mm (H).
• Warranty – Manufacturer’s standard warranty applies.
